Function Units
isa_manim.isa_objects.func_unit presents one function unit in ISA flow. This object
can be used to present one operator (like +/-) or one predefined function (like
max/min).
This object provides the name of the function, as well as input arguments and output results. One function unit can have as many input arguments and output results as necessary.
Source code: test_func_unit.py

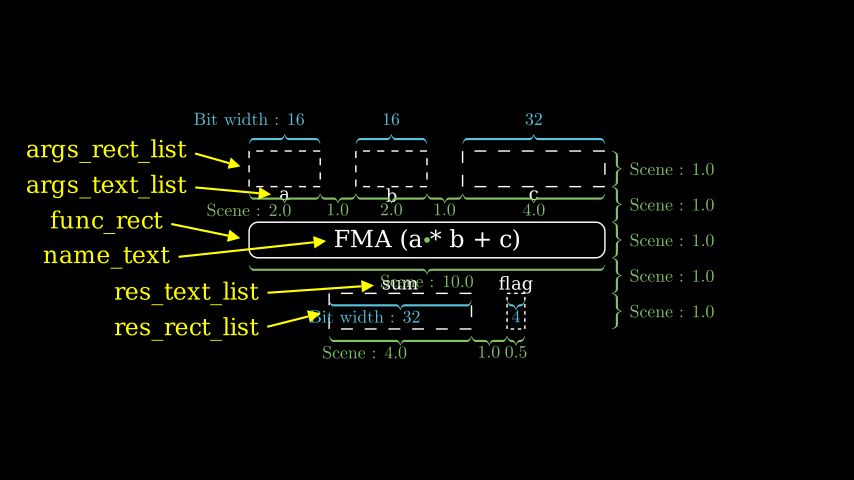

As shown in the above figure, one function unit contains the following Manim objects:
- func_rect presents the function unit.
- The width of func_rect should cover all source and destination operands.
- name_text presents the name of the function unit, which centrally aligns with
func_rect.
- args_rect_list and res_rect_list present the group of source operands and the
group of destination operands.
- Each operand is presented by one dot rectangle.
- The width of each rectangle in args_rect_list and res_rect_list presents the
bit width of the corresponding operand.
- args_text_list and res_text_list present the group of names of source operands
and the group of names of destination operands.
- One Text item in args_text_list and res_rect_list horizontally aligns with
the corresponding rectangle in args_rect_list and res_rect_list. The Text
item is also vertically below the corresponding rectangle.
The height of func_rect, args_rect_list, res_rect_list is 1.0. Then, a gap of 1.0
is added between these Manim objects in veritial. So, the total height of one function
unit is 5.0.
The origin point is located in the center position of
func_ellipse. The function unit is symmetrical about the center of the origin.
Function get_arg_pos and get_res_pos return the position of one specified source and
destination operand separately. The bit width of the specified element can be different
from the bit width of the operand.
The function unit maintains one pointer to function in func_callee. The assigned
function can be one complete function or an inline function (lambda function). When
performing function calling animations, the assigned function can operate on the value
from element units of source operands and return the output value. Member functions
cannot be assigned to func_callee because positional operation self cannot be passed
to func_callee.
FunctionUnit
Bases: VGroup
Object for one function unit.
Attributes:
| Name | Type | Description |
|---|---|---|
func_rect |
RoundedRectangle
|
Round rectangle of function unit. |
name_text |
Text
|
Text of name of function unit locating at the center of |
args_rect_list |
List[Rectangle]
|
List of rectangle of source operands. |
args_text_list |
List[Text]
|
List of text of name of source operands. |
res_rect_list |
List[Rectangle]
|
List of rectangle of destination operands. |
res_text_list |
List[Text]
|
List of text of name of destination operands. |
func_name |
str
|
Function name. |
func_color |
Color
|
Color of function rectangle, operand rectangles and operand name label. |
func_font_size |
int
|
Font size of function rectangle. |
func_value_format |
str
|
Format string for result values. Inherented by element units. |
func_callee |
Callable
|
Pointer to function that perform the functionality of this unit. |
func_args_width_list |
List[int]
|
List of bit width of source operands. |
func_args_name_list |
List[str]
|
List of name of source operands. |
func_res_width_list |
List[int]
|
List of bit width of destination operands. |
func_res_name_list |
List[str]
|
List of name of destination operands. |
func_args_count |
int
|
Number of source operands |
func_res_count |
int
|
Number of destination operands. |
require_serialization = True
class-attribute
instance-attribute
Animation related with this object must be serialized.
__init__(name, color, args_width_list, res_width_list, args_name_list, res_name_list, font_size, value_format, func_callee)
Constructor a function call.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
name
|
str
|
Function name. |
required |
color
|
Color
|
Color of function rectangle, operand rectangles and operand name label. |
required |
args_width_list
|
List[int]
|
List of bit width of source operands. |
required |
res_width_list
|
List[int]
|
List of bit width of destination operands. |
required |
args_name_list
|
List[str]
|
List of name of source operands. |
required |
res_name_list
|
List[str]
|
List of name of destination operands. |
required |
font_size
|
int
|
Font size of function rectangle. |
required |
value_format
|
str
|
Format string for result values. |
required |
func_callee
|
Callable
|
Pointer to function that perform the functionality of this unit. |
required |
__repr__()
Return a string for debugging.
Returns:
| Type | Description |
|---|---|
str
|
A string for debugging. |
__str__()
Return a string for debugging.
Returns:
| Type | Description |
|---|---|
str
|
A string for debugging. |
get_arg_pos(index, offset, elem_width)
Return the center position of one specified source operand.
elem_width specifies the bit width of generated element unit, which equals the
bit width of operand in most case. It is possible that generated element unit
only cover a part of the specified operands.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
index
|
int
|
Index of source operand. |
required |
offset
|
int
|
Offset of lower bits. |
required |
elem_width
|
int
|
Width of element in bits. |
required |
Returns:
| Type | Description |
|---|---|
ndarray
|
Position of the specified source operand. |
get_placement_height()
Return the height of this object for placement. The height is ceil to an integer.
Returns:
| Type | Description |
|---|---|
int
|
The height of this object. |
get_placement_mark()
Return the marker of this object for placement, which is 3.
Returns:
| Type | Description |
|---|---|
int
|
Marker of this object. |
get_placement_width()
Return the width of this object for placement. The width is ceil to an integer.
Returns:
| Type | Description |
|---|---|
int
|
The width of this object. |
get_res_pos(index, offset, elem_width)
Return the center position of one specified destination operand.
elem_width specifies the bit width of generated element unit, which equals the
bit width of operand in most case. It is possible that generated element unit
only cover a part of the specified operands. For example, 16-bit multiple
operation generate 32-bit result.
- The whole destination operand is accessed if
indexis 0,offsetis 0 andelem_widthis 16. - Lower half of the product is accessed if
indexis 0,offsetis 0 andelem_widthis 16. - Higher half of the product is accessed if
indexis 0,offsetis 16 andelem_widthis 16.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
index
|
int
|
Index of destination operand. |
required |
offset
|
int
|
Offset of lower bits. |
required |
elem_width
|
int
|
Width of element in bits. |
required |
Returns:
| Type | Description |
|---|---|
ndarray
|
Position of the specified destination operand. |
set_placement_corner(row, col)
Set the position of object by the left-up corner position. Move object to the specified position.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
row
|
int
|
Vertical ordinate of left-up corner. |
required |
col
|
int
|
Horizontal ordinate of left-up corner. |
required |
