Element Unit

isa_manim.isa_objects.one_dim_reg_elem presents one element in registers, function units, and memory units. This object can be used to present data reading from/writing to one register, moving between registers, function units, and memory units.

Source code: test_elem_unit.py

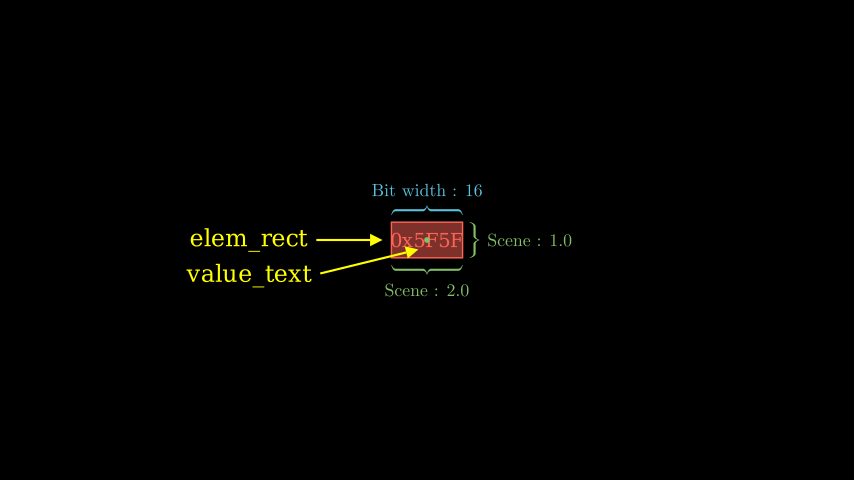

As shown in the above figures, one element unit contains the following Manim objects: - elem_rect presents the element. - The width of elem_rect presents the bit width of the register. - The height of elem_rect is 1.0. - In a normal situation, elem_rect is filled with the same color as the boundary. The opacity is set to 0.5. - value_text presents the element's value, which is centrally aligned with elem_rect.

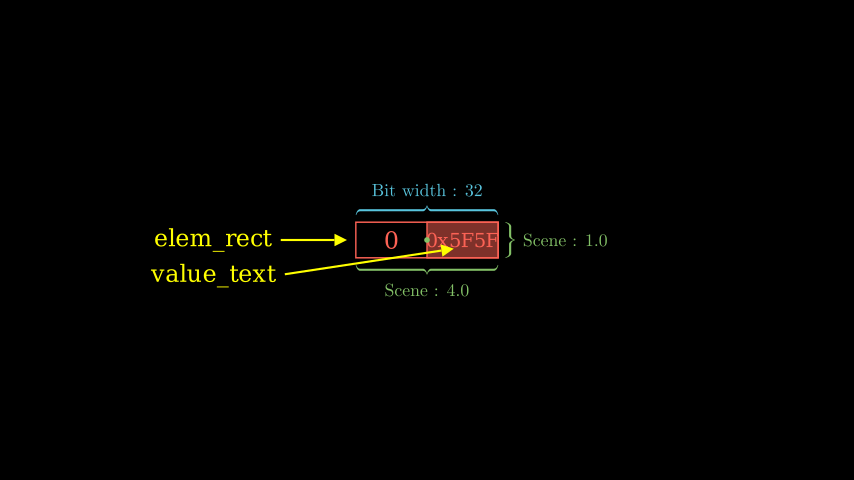

In the case of zero-extend, some MSBs are forced to zero. In this case, the element unit contains four Manim objects: - elem_rect still presents the element as above. However, the elem_rect is transparent. - fill_elem_rect covers the non-zero bits. - value_text presents the element's value, which is centrally aligned with fill_elem_rect. - fill_value_text with a string of "0" covers the zero bits.

Source code: test_elem_unit_zero.py

fill_elem_rect and fill_value_text are not public members.

The origin point is located in the center position of elem_rect as same as the center position of this object.

Element units can maintain a value as a normal variable. The option value in the constructor function specifies the element's value. Public member elem_value reads out the value.

If one element has been assigned a valid value, the value will be displayed. The format to print the value is defined by a format string as Python. For example, ":d" means decimal format, and "0x:x" means hexadecimal format. The option value_format in the constructor function specifies the value format.

ElemUnit

Bases: VGroup

Object for register element.

Attributes:

Name	Type	Description
elem_rect	Rectangle	Rectangle of element unit.
value_text	Text	Text of element value.
elem_color	Color	Color of element rectangle and value text.
elem_width	int	Bit width of element.
elem_value	Any	Value of this element.
elem_fill_opacity	float	Fill opacity of this element.
elem_font_size	int	Font size of value text.
elem_value_format	str	Format to print data value.
elem_high_bits	int	Specify a number of Most significant bits.
elem_high_zero	bool	True means the higher part of the register is forced to zero.

require_serialization = False class-attribute instance-attribute

Animation related with this object does not need to be serialized.

__init__(color, width, value, fill_opacity, font_size, value_format, high_bits, high_zero)

Constructor an element.

Parameters:

Name	Type	Description	Default
color	Color	Color of this element.	required
width	int	Width of this element, in bit.	required
value	Any	Value of this element, which should be Any type rather than array.	required
fill_opacity	float	Fill opacity of this element.	required
font_size	int	Font size of value text.	required
value_format	str	Format to print data value.	required
high_bits	int	Specify a number of Most significant bits.	required
high_zero	bool	True means the higher part of the register is forced to zero.	required

get_elem_pos(offset, elem_width)

Return the center position of another element that is right-aligned with current element. offset specifies the offset of the lowest bit.

Parameters:

Name	Type	Description	Default
offset	int	Offset of lower bits.	required
elem_width	int	Width of element in bits.	required

Returns:

Type	Description
ndarray	Position of the specified element.

get_placement_height()

Return the height of this object for placement. The height is ceil to an integer.

Returns:

Type	Description
int	The height of this object.

get_placement_mark()

Return the marker of this object, which is 2.

Returns:

Type	Description
int	Marker of this object.

get_placement_width()

Return the width of this object for placement. The width is ceil to an integer.

Returns:

Type	Description
int	The width of this object.

set_placement_corner(row, col)

Set the position of object by the left-up corner position. Move object to the specified position.

Parameters:

Name	Type	Description	Default
row	int	Vertical ordinate of left-up corner.	required
col	int	Horizontal ordinate of left-up corner.	required
