Animations For Function Units

isa_manim.isa_animate.function_animate.decl_function declares one function unit by fading in.

isa_manim.isa_animate.function_animate.read_func_imm declares one immediate operand of one function unit. The immediate operand will fade in at the specified position while other operands move to their positions.

isa_manim.isa_animate.function_animate.function_call presents how elements pass through one function unit. The animation has two steps.

• In the first step, argument elements move to arguments of one function unit.
• In the second step, argument elements fade out while result elements fade in.

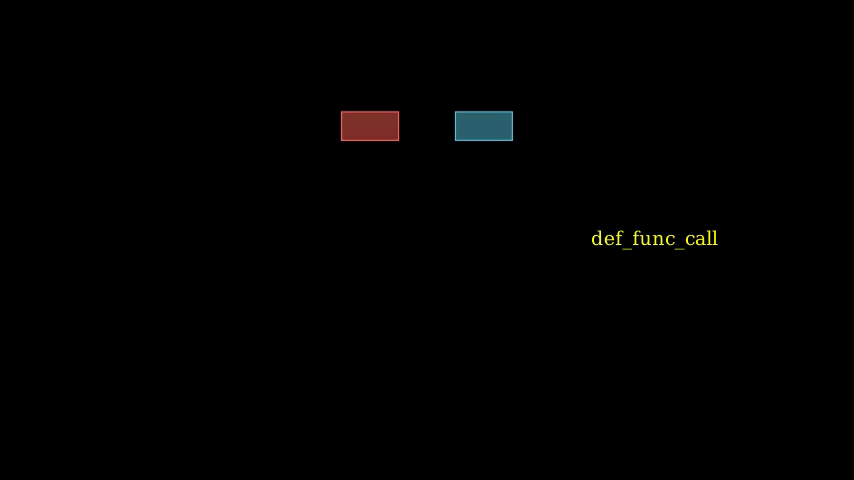

An example for decl_function, read_func_imm and function_call is as below:

Source code: test_func_animation.py

The above functions generate a sequence of animations, but they do not register animation to Manim unless play() is applied on the result values

function_animate

Animation with Function unit.

decl_func_unit(*func_unit)

Declare one function unit.

Parameters:

Name	Type	Description	Default
func_unit	List[FunctionUnit]	Object of function.	()

Returns:

Type	Description
Animation	Animation to declare function unit.

function_call(func_unit, args_list, res_list, args_offset, res_offset)

Animation for calling one function.

This animation has the following steps:

• Move elements of source operands to the position of arguments.
• Wait 0.5 second.
• Fadeout the source operands and fadein the destination operands.

Parameters:

Name	Type	Description	Default
func_unit	FunctionUnit	Object of function object.	required
args_list	List[ElemUnit]	List of argument elements.	required
res_list	List[ElemUnit]	List of result elements.	required
args_offset	List[int]	Offset of LSB of each argument.	required
res_offset	List[int]	Offset of LSB of each result.	required

Returns:

Type	Description
Animation	Animation to calling one function.

read_func_imm(elem)

Animation for declare one immediate operand. Fade in element at the specified location related to the function unit.

Parameters:

Name	Type	Description	Default
elem	ElemUnit	Object of the immediate element.	required

Returns:

Type	Description
Animation	Animation to declare immediate operand.
