Animations for Memory Units

isa_manim.isa_animate.memory_animate.decl_memory_unit declares one memory unit by fading in.

isa_manim.isa_animate.memory_animate.read_memory and isa_manim.isa_animate.memory_animate.read_memory_without_addr presents the animation to read data from memory. isa_manim.isa_animate.memory_animate.write_memory and isa_manim.isa_animate.memory_animate.write_memory_without_addr presents the animation to write data to memory. These four functions perform different animations according to some conditions of operations.

If the address element does not provide a valid address or the provided address does not match any memory map, the accessed memory locations cannot be marked on memory maps of the memory unit. In this situation, read_memory_without_addr and write_memory_without_addr are applied.

• By the first step in read_memory_without_addr, the address element moves to the address port. Then, the address element fades out while the data element fades in. At last, the data element can be observed at the data port.
• By the first step in write_memory_without_addr, the address element moves to the address port, and the data element moves to the data port first. Then, both the address element and the data element fade out.

Finally, a status element fades if the memory unit has a status port, and a status element is provided to function read_memory_without_addr and write_memory_without_addr.

An example for decl_memory_unit, read_memory_without_addr and write_memory_without_addr is as below:

Source code: test_memory_animation_without_addr.py

read_memory_without_addr and write_memory_without_addr do not work with vector load/store instructions. If the memory unit allows parallel animations, the address elements and data elements for different vector elements will overlap together at the address port and then data port. If the memory unit does not allow parallel animations, the animation for one instruction has to cost a much longer time since elements must be handled one by one.

The distribution of accessed memory locations is very important to explain the instruction behaviors. It is not suggested to use read_memory_without_addr and write_memory_without_addr in new animations. It is expected that address elements always have valid address values to present in memory maps.

Users are suggested to use read_memory and write_memory to generate animations with memory units. The major difference between read_memory/write_memory and read_memory_without_addr/write_memory_without_addr lies in that read_memory/write_memory marks the accessed memory locations. The animation has four steps: moving address elements, marking address position, marking address range, and fading in the status element.

The behavior in the first step depends on whether the memory unit allows parallel animation and whether the actual address matches the value in addr_item (presented by the option addr_match).

• Move the address element to the address port when the memory unit does not allow parallel animations and the actual address matches the value in addr_item.
  • Move the data element to the data port simultaneously when write_memory is called.
• Highlight the address element when the memory unit allows parallel animations and the actual address matches the value in addr_item.
• Otherwise, wait one second to keep animations synchronized for vector elements.

In the second step, the address element is transformed into the address mark on the matched memory map when the actual address matches the value in addr_item. The address mark is one triangle handed down. If the actual address to read is not the same as the value in addr_item, fade in the address mark.

In the third step, the behavior depends on whether the memory unit allows parallel animation.

• If the memory unit allows parallel animation,
  • read_memory creates one memory mark on the matched memory map.
  • write_memory transforms the data element into a data mark on the memory map.
• If the memory unit does not allow parallel animation,
  • read_memory creates one memory mark on the matched memory map and then transforms the memory map to a data element at the data port.
  • write_memory transforms the data element into a data mark on the memory map.

At last, a status element fades if the memory unit has a status port. Hence, if the status port applies, a status element is provided to function read_memory_without_addr and write_memory_without_addr.

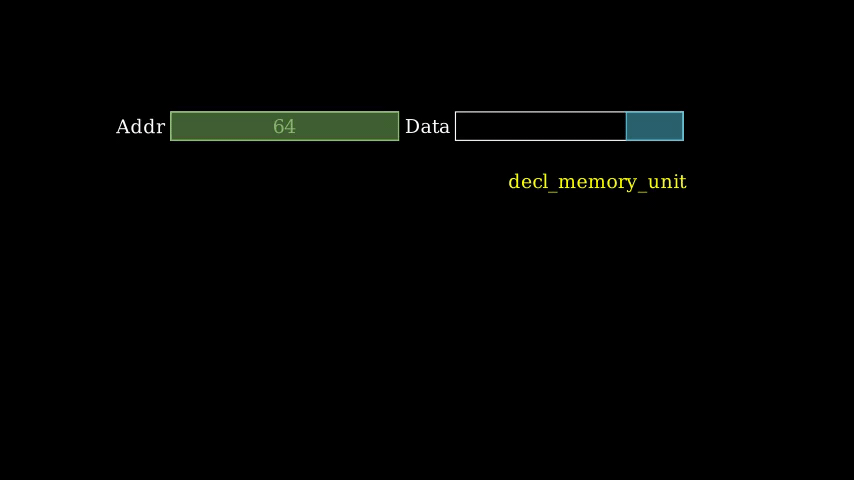

Below is an example of decl_memory_unit, read_memory, and write_memory for serialization animations.

Source code: test_memory_animation.py

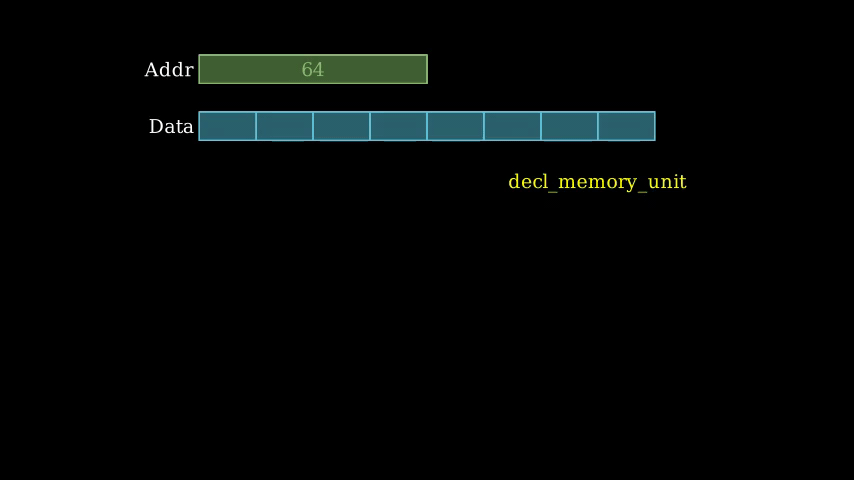

Below is an example for decl_memory_unit, read_memory, and write_memory for parallel animations. The status port also has output in this example.

Source code: test_memory_animation_parallel.py

The above functions generate a sequence of animations, but they do not register animation to Manim unless play() is applied on the result values

If the memory unit has dual ports, the port used by memory animations is selected by argument port2.

memory_animate

Animation with Memory Unit.

decl_memory_unit(mem_unit)

Declare one memory unit.

Parameters:

Name	Type	Description	Default
mem_unit	MemoryUnit	Object of memory.	required

Returns:

Type	Description
Animation	Animation to declare memory unit.

read_memory(mem_unit, addr_item, data_item, status_item, addr_mark, mem_mark, addr_match, port2)

Read data from one memory unit.

Step of this animation is as below:

• Move the address element to the address port only when the memory unit does not allow parallel animations and the actual address matches value in addr_item.
  • Highlight indicate the address element when the memory unit allows parallel animations and the actual address matches value in addr_item.
  • Otherwise, wait 1s.
• Transform the address element to the address mark on the matched memory map.
  • If the actual address to read is not same as the value in addr_item, fadein the address mark.
• Create memory mark on the matched memory map.
• Move memory mark to the data port if the memory unit only allows serialized animations.
• Fadein the status element if status_item is provided and the mem_unit has status_rect.

Parameters:

Name	Type	Description	Default
mem_unit	MemoryUnit	Object of memory unit.	required
addr_item	ElemUnit	Address element.	required
data_item	ElemUnit	Data element.	required
status_item	Union[ElemUnit, None]	Status element.	required
addr_mark	Triangle	Address mark.	required
mem_mark	Rectangle	Memory mark.	required
addr_match	bool	True means the actual address to read is same as the value of addr_item.	required
port2	bool	True means read data to the 2nd data port. Otherwise read data to the 1st data port.	required

Returns:

Type	Description
Animation	Animation to read data from memory unit.

read_memory_without_addr(mem_unit, addr_item, data_item, status_item, port2)

Read data from one memory unit.

Because the address element does not provide an address, or the provided address does not match the range of memory maps, address marks and memory marks cannot be generated and displayed.

Step of this animation is as below:

• Move the address element to the address port.
• Fadeout the address element and fadein the data element.
• Fadein the status element if status_item is provided and the mem_unit has status_rect.

Parameters:

Name	Type	Description	Default
mem_unit	MemoryUnit	Object of memory unit.	required
addr_item	ElemUnit	Address element.	required
data_item	ElemUnit	Data element.	required
status_item	Union[ElemUnit, None]	Status element.	required
port2	bool	True means read data to the 2nd data port. Otherwise read data to the 1st data port.	required

Returns:

Type	Description
Animation	Animation to read data from memory unit.

write_memory(mem_unit, addr_item, data_item, status_item, addr_mark, mem_mark, addr_match, port2)

Write data to one memory unit.

Step of this animation is as below:

• Move the address element to the address port and move the data element to the data port only when the memory unit does not allow parallel animations and the actual address matches value in addr_item.
  • Highlight indicate the address element when the memory unit allows parallel animations and the actual address matches value in addr_item.
  • Otherwise, wait 1s.
• Transform the address element to the address mark on the matched memory map.
  • If the actual address to read is not same as the value in addr_item, fadein the address mark.
• Move the data element to the data port to the memory mark if the memory unit only allows serialized animations.
  • Otherwise, create memory mark on the matched memory map.
• Fadein the status element if status_item is provided and the mem_unit has status_rect.

Parameters:

Name	Type	Description	Default
mem_unit	MemoryUnit	Object of memory unit.	required
addr_item	ElemUnit	Address element.	required
data_item	ElemUnit	Data element.	required
status_item	Union[ElemUnit, None]	Status element.	required
addr_mark	Triangle	Address mark.	required
mem_mark	Rectangle	Memory mark.	required
addr_match	bool	True means the actual address to write is same as the value of addr_item.	required
port2	bool	True means write data from the 2nd data port. Otherwise write data from the 1st data port.	required

Returns:

Type	Description
Animation	Animation to write data to memory unit.

write_memory_without_addr(mem_unit, addr_item, data_item, status_item, port2)

Write data to one memory unit.

Because the address element does not provide an address, or the provided address does not match the range of memory maps, address marks and memory marks cannot be generated and displayed.

Step of this animation is as below:

• Move the address element to the address port, and move the data element to the data port.
• Fadeout the address element and data element.
• Fadein the status element if status_item is provided and the mem_unit has status_rect.

Parameters:

Name	Type	Description	Default
mem_unit	MemoryUnit	Object of memory unit.	required
addr_item	ElemUnit	Address element.	required
data_item	ElemUnit	Data element.	required
status_item	Union[ElemUnit, None]	Status element.	required
port2	bool	True means write data from the 2nd data port. Otherwise write data from the 1st data port.	required

Returns:

Type	Description
Animation	Animation to write data to memory unit.
